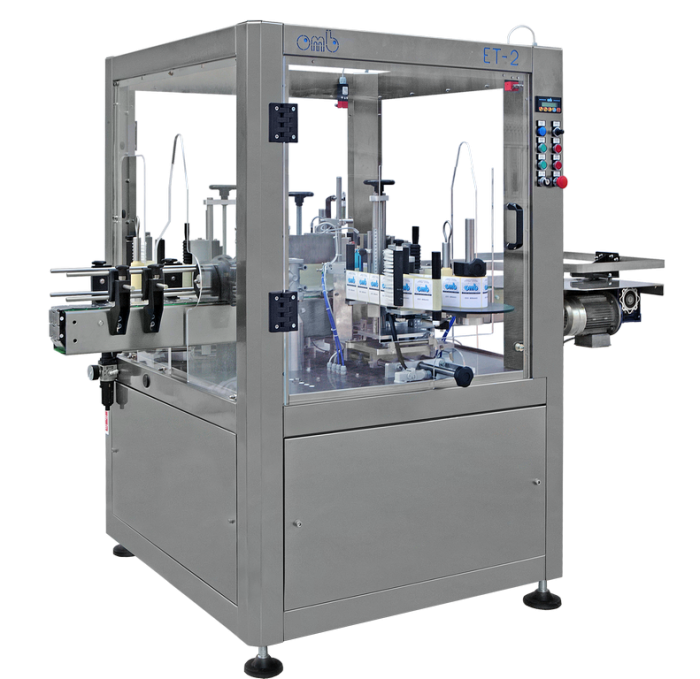

Labelling machine mod. ET 2 champagne + distributor

Automatic linear labelling machine for attaching self-adhesive labels to cylindrical bottles or containers of wine, beverages or foodstuffs in general, consisting of: a body labelling station (with the opportunity for attaching a back label from the same roll); forward feed; fixed pick-up plate; stepping motor. The linear labelling machine is delivered ready for including in a bottling line and equipped for a given type of capsule and bottle or cylindrical container.

Made entirely of stainless steel, it is solid and strong and based on an advanced technology, achieving a high output. Designed for maximum operator safety and ease of use, it is quick to adjust and complete with safety shields.

Working direction from left to right

Output:   -2000 bottles per hour for still wines
               -1000 bottles per hour for champagne


EQUIPMENT:

• -station for back label
  -station for champagne bottle neck label
  -standard and large capsule distributor with cap/cork checking device
  -head handling unit
  -forced air cooled thermal head for PVC capsules
  -rolling head for aluminum capsules – output 1000 bottles per hour
  -head handling unit for large capsules +1 capper bell for sealing capsules complete with photocell for centering wording on the large -capsule in relation to the folds
  -device for centering labels in relation to wording on large capsules
  -device on the neck label station for centering in relation to the labelled bottle
  -marker for hot printing with printing area 18 x 28 mm, complete with a set of numbers from 0 to 9 + L + period + neutrals  3 mm high
